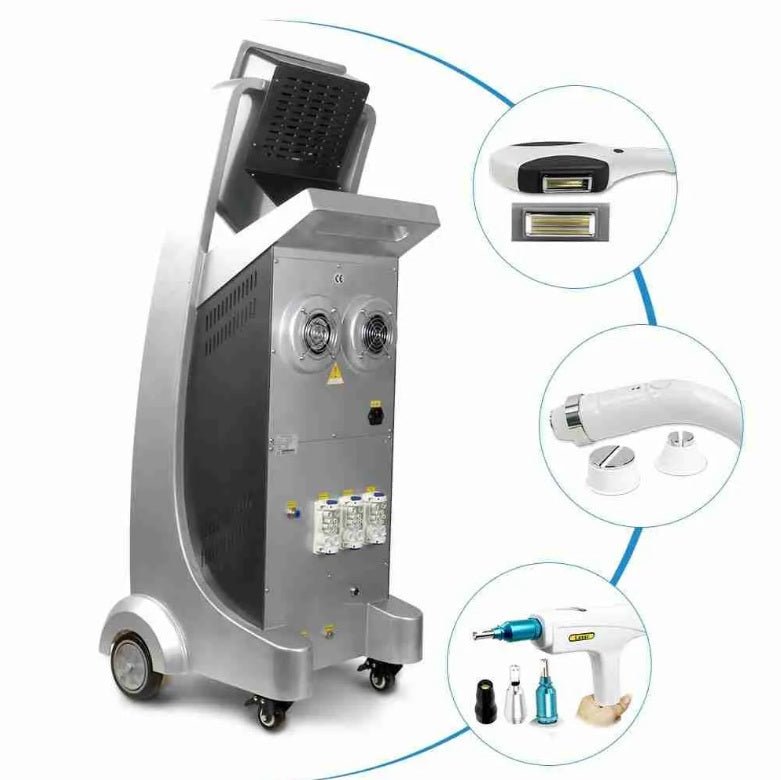

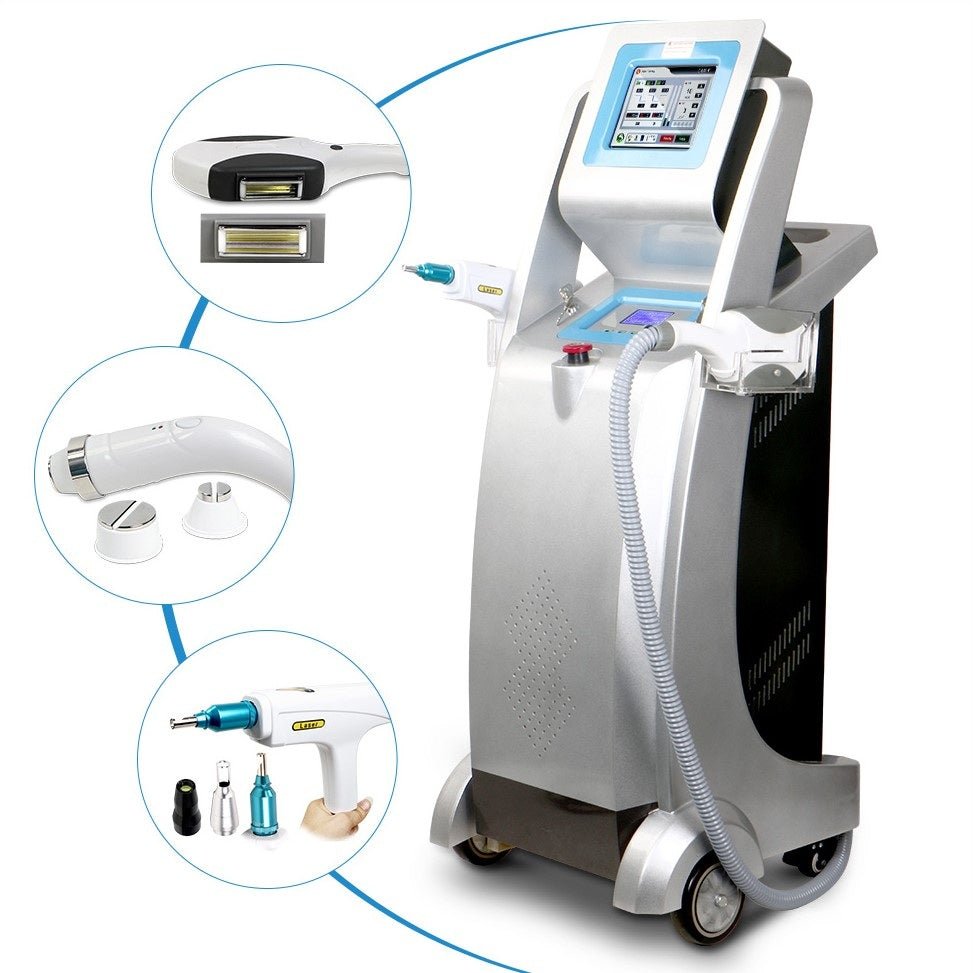

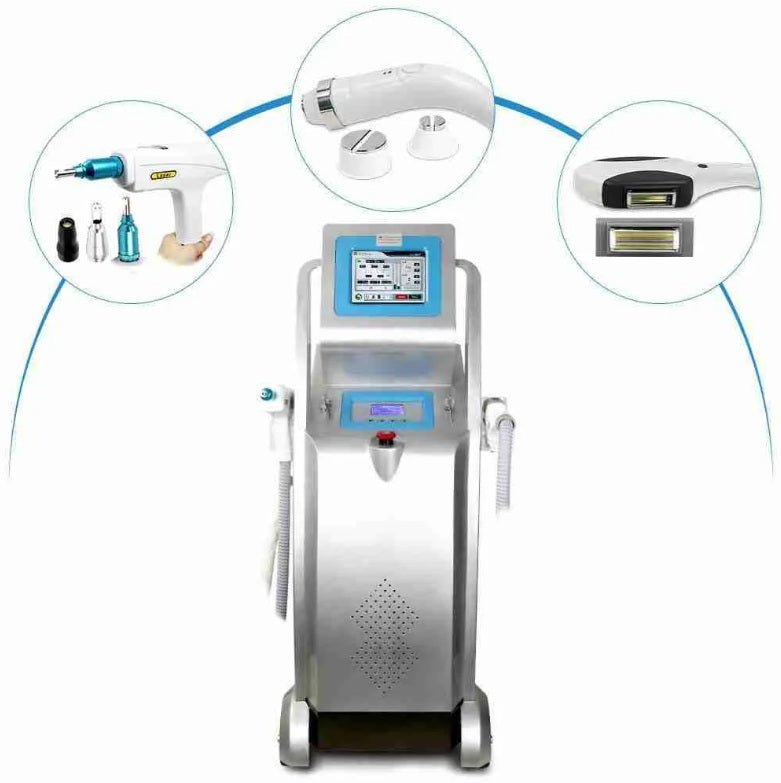

Shape Tactics 3-in-1 IPL RF YAG Laser
Shape Tactics 3-in-1 IPL RF YAG Laser
The Shape Tactics 3-in-1 IPL RF YAG Laser System integrates Intense Pulsed Light (IPL), Bi-Polar Radio Frequency (RF), and Q-Switched ND: YAG Laser technology to provide a multi-functional approach to skin rejuvenation, hair reduction, and tattoo removal. This advanced system targets various skin layers, helping to improve skin tone, reduce pigmentation, and promote collagen production for firmer skin.
With IPL and RF technology, this system utilizes photothermolysis to break down unwanted pigments while RF radio waves stimulate collagen, supporting skin elasticity. The Q-Switched ND: YAG laser applies high-intensity energy to break down tattoo pigments and deeper pigmentation concerns while preserving surrounding skin.
Important Setup Note: Before use, fill the machine with purified or distilled water to ensure proper function. Running the device without water may cause damage.
IPL & RF
- Helps improve overall skin tone and texture.
- Targets freckles, age spots, and sun-damaged skin.
- Provides a hair removal solution for multiple body areas.
- YAG Laser – Effective for removing freckles, moles, and tattoos. Designed for eyebrow, eyeliner, and lip embroidery removal. Helps break down pigment-related skin concerns.
- Black Doll Laser (BD-LS) – Helps refine pores, smooth skin, and enhance skin elasticity.
Specifications
| Pulse Count | 1-5 single-pulse |
|---|---|
| Pulse Duration | 1.0-9.9ms adjustable |
| Delay Time | 1-150ms adjustable |
| Spot Size | 10×40mm |
| IPL Energy | 5-50J/cm² |
| Wavelength | 1064nm, 532nm |
| IPL Power | 1200W |
| YAG Energy Density | 600-1500J/cm² |
| YAG Frequency | 1-5Hz adjustable |
| YAG Power | 500W |
| RF Power | 3-10MHz |
| RF Duration | 50-2500ms adjustable |
| RF Delay | 0-10s adjustable |
| Input Voltage | 110V±10% 50Hz-60Hz / 220V±10% 50Hz-60Hz |
Package Contents
- 1x Main Machine
- 1x IPL Handle
- 1x YAG Handle
- 3x Attachment Heads
- 1x RF Handle
- 2x RF Attachment Heads
- 1x Protective Goggle
- 1x Water Funnel
- 1x Power Cord
